WMTA Alloy Turbine Mag-Drive Pumps

Series WMTA

- Mag-Drive Single Stage Turbine

WMTA machined billet regenerative turbine seal-less mag-drive pumps (superseding the MTA) can be constructed for high system pressures and special alloy configurations. All WMTA pumps are equipped with zero leakage magnetic couplings to meet the latest toxic emissions regulations. The absence of elaborate mechanical seal systems eliminates costly pump maintenance, lost production time and process contamination. Variations in head calculations have minimal effect on the flow of a turbine pump. Also, turbine pumps can be throttled to a required duty point without by-passing.

Features

High head/ low flow capability minimizes by-pass requirements and prevents overheating of centrifugals and high head cavitation
Self balancing impeller – Zero axial thrust loading
Impeller design handles up to 20% entrained gas-ideal for pumping liquefied gases
No galling or metal to metal contact
Heavy duty alloy containment shell
High torque magnets, suitable for direct starting motors

Technical Data

Flow: 25-45 GPM (.5-10 m³/H)
Head: To 700 feet (213 m)
Temperature Ratings: -148 to 600°F (-100 to 316°C)
Pressure ratings: 7250 PSI (500 Bar)

Materials

AISI SS-316 Stainless Steel, Alloy-20, Incoloy-825, Hastelloy-C27, *(Carbon Steel, Titanium, Casteloy)

Documentation Downloads

Brochure Links

WMTA6-LN-2S/3S Multistage Turbine Mag-Drive Pumps

Series WMTA-MS

- Mag-Drive Multistage Stage Turbine

Warrender Series WMTA – LN Mag-drive regenerative turbine pumps safely meet high head, low NPSA system requirements. Dynamic turbine impeller pumping action handles entrained gases to resist vapor locking.

WMTA- LN multi-stage magnetic drive process pumps have been designed for applications requiring low flows at high heads but with low NPSHa. WMTA6 magnetic drive process pumps are top suction top discharge, two and three stage configurations, with a centrifugal first stage impeller / inducer to achieve low NPSH values. The second and third stage are regenerative turbine impellers that develop heads up to and 1000 feet at 60 Hz. WMTA6 magnetic drive process pumps have been specifically designed for liquefied gases (e.g. NH3, CO2, LPG, Butane, etc.). In Particular, refrigeration applications where the total absence of liquid vapor releases to plant and personnel, or CFC derivatives into the atmosphere that is harmful to the environment. The robust construction is achieved by machined billet from forged bars, and their seal less design, results in a safe, reliable and durable pump suitable for oil and gas refineries, chemical plants and OEM systems. When required, the WMTA6 pumps can be built in an API-685 configuration.

Features

High head pumping with pulsation free performance
Handles up to 20% entrained gas, resists vapor locking
Dynamic design (avoid over pressurization w/ P.D. pumps)
Low heat induction to avoid flashing

Technical Data

Flow: 0.25- 45 GPM (0.5 - 10 m³/H)
Head: To 900 feet (230 m)
Temperature Ratings: -148 to +572°F (-100 to +300°C)
Pressure ratings: to 1450 PSI (100 Bar)
NPSHr to 1”

Materials

SS 316 Stainless Steel, Carbon Steel, Hastelloy-C27, Titanium

Documentation Downloads

-WMTA-LN-2 Stage Curves 50-60Hz

-WMTA-LN-3 Stage Curves_50-60Hz

-Dimension Drawing

-IOM Manual

-New Seal-less Mag-Drive Pumps Brochure

-Data Sheet

WMT Billet PP/PVDF Turbine Mag-Drive Pumps

Series WMT

- Mag-Drive Turbine

MT Series (WMT) machined thermoplastic regenerative turbine seal-less Mag-Drive Pumps are ideally suited to low applications, MT regenerative turbine pump avoid oversized centrifugals that require flow by-passing and excessive horsepower. MT non-metallic turbine designs have excellent chemical resistance and extremely low wear characteristics. Variations in head calculations have minimal effect on the flow of the turbine pump. Also, turbine pumps can be throttled to a required duty point without by-passing.

Features

Exclusive solid machined PP or PVDF casings and impellers components
Heavy casing wall thicknesses
Resists external corrosion
Self-Balancing impeller eliminates thrust bearing wear
Handles up to 20% entrained gas, resists cavitation
Direct starting, standard NEMA motors

Technical Data

Flow: 0.6-65 GPM (0.13-13 m³/H)
Head: To 180 feet (55 m)
Temperature Ratings: To 200°F (95°C)
Pressure ratings: 100 PSIG (7 Bar)

Materials

PP, PVDF, ETFE

Documentation Downloads

-Composite Brochure Seal-less Mag-Drive

-Solid PP & PVDF Thermoplastic Mag-Drive

-Data Sheet

WMCA-ANSI B73.1, ISO 2858, & API 685 Alloy Centrifugal Mag-Drive Seal-less Pumps

Series ANSI B73.1, ISO 2858, & API 685 Alloy

Process Horizontal, End Suction

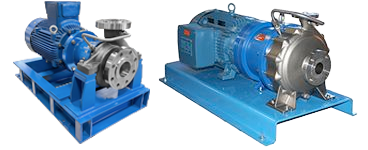

Warrender WMCA ANSI B73.1, ISO 2858, & API 685 alloy centrifugal process pumps program (superseding the MCA) is a culmination of 30 years of research, engineering, product development and manufacturing technology. The WMCA designs are the benchmark for heavy-duty seal-less process pumps offering the utmost in versatility and reliability in the most arduous applications. Particularly suited to pump liquids in any industrial field. Chemical, Petrochemicals, Pharmaceutical, Paper mills, textiles industry, food processing, sugar plants, dairies, electronics, water treatment or any hazardous chemical application.

Features

Casing built with heavy wall thicknesses; Flanges machined to 150 lb. or 300 lb. R.F. ANSI configurations
The standard one piece Hastelloy-C276 containment housing exceeds ASME pressure vessel codes; rated for 350 PSI working pressures with capabilities to 1500 PSI
External lubrication maintains highest pressure differential, enabling dead-head operation.
Backed by silicon carbide thrust bearings, impeller pump-out vanes balance axial thrust
Quick-change rear cartridge assembly (a WMCA standard) allows for replacement and restart-up within 10 minutes
Dual back-pull-out design or services either hydraulic end or ball bearing assembly

Technical Data

Flow: 8-4500 GPM (2-1000 m³/H)
Head: To 700 feet (213 m)
Temperature Ratings: -248 to 600°F (-150 to 315°C)
Pressure ratings: 350 PSI (24 Bar)

Materials

AISI 316 or SS 316L, Cast steel WCB (casing and Impeller only), Alloy 20, Monel-400, Hastelloy B or C-276

Documentation Downloads

-Composite Brochure Seal-less Mag-Drive

-Data Sheet

Replacement Parts:

Rear Wet End Kits, Shaft, Sleeve & Thrust Bearings, Impeller & Casing wear Rings, Internal Magnets, Casing Gaskets, Power/ Bearing Frame Components

SR Alloy Centrifugal Mag-Drive Seal-less Pumps

Series SR

Warrender Series SR alloy centrifugal Mag-drive pumps provide the advantages of a heavy-duty seal-less process pump in a compact, cost effective design. SR pumps are equipped with zero leakage magnetic couplings to meet the latest toxic emissions regulations. The absence of mechanical seals eliminates costly pump maintenance, lost production time and process contamination.

Features

Seal-less magnetic drive coupling
Rugged alloy casing and pump components
Heavy duty alloy containment shell
High efficiency enclosed impeller design
Silicon carbide sleeve vs. carbon journal bearings with intermittent dry-run capability
High torque magnets suitable for direct starting motors
Close-coupled NEMA motor frame or bearing pedestals

Technical Data

Flow: 5-150 GPM (1.1-34 m³/H)
Head: To 135 Feet (41.15 m)
Power Rating: 1/2 to 7.5 HP
Temperature Ratings:
Standard Design (240°F)
High Temp. Design (450°F)
Sub-Zero Temp. Design (0°F)
Pressure ratings: 150 PSI to 300 PSI (MAWP)* (*depending on operating temperature)

Materials

SS-316 stainless steel, Hastelloy-C276

Documentation Downloads

Replacement Parts:

Rear Wet End Kits, Shaft, Sleeve & Thrust Bearings, Impeller & Casing wear Rings, Internal Magnets, Casing Gaskets, Power/ Bearing Frame Components

WMCH Billet PP/PVDF Mag-Drive Pumps

Series WMCH

Mag-Drive Centrifugal

WMCP machined thermoplastic horizontal centrifugal seal-less mag-drive pumps (MCH Series) are fabricated from SOLID GLASS FREE Simona® PP or PVDF thermoplastics to resist internal or external corrosion. Heavy walled, CNC machined construction provide far greater resistance to permeation and migration of corrosive and permeating liquids. Additionally, added strength and thermal stability resists deformation, even in the most severe applications.

Features

Exclusive SOLID GLASS FREE machined PP or PVDF casings and impellers components for maximum chemical resistance.
All plastic casing withstands external corrosion
Integral raised face flanges (no threaded adapters) to ensure zero leakage
Modular impeller allows for varying hydraulic performances
Oversized, high purity ceramic or silicon carbide thrust bearings and shaft
Standard, direct starting NEMA motors

Technical Data

Flow: 3-500 GPM (.68-113 m³/H)
Head: To 175 feet (53 m)
Temperature Ratings: To 200°F (95°C)
Pressure ratings: 100 PSIG (7 Bar)

Materials

PP, PVDF

Documentation Downloads

Replacement Parts:

Rear Wet End Kits, Shaft, Sleeve & Thrust Bearings, Impeller & Casing wear Rings, Internal Magnets, Casing Gaskets, Power/ Bearing Frame Components

M Molded PP/PVDF Centrifugal Mag-Drive Pumps

Series M

Mag-Drive Centrifugal

WMCP molded horizontal centrifugal seal-less mag-drive thermoplastic pumps (PROMAG M SERIES) provide high reliability, with emphasis on optimum chemical compatibility. Interchangeable impellers provide flexibility for precisely matching head and flow capacities. WMCP Molded Horizontal pumps can be used in a wide range of acids and alkaline solutions up to temperatures of 180°F
